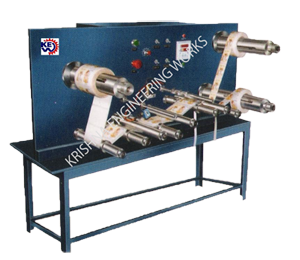

Narrow Web Slitting Rewinding Machine
Krishna Engineering Works has designed and built narrow web slitting unit as ideal for slitting salvage winding, and de-laminatio of rolls. The units feature multiple diameter differential or air-expanding rewinder. It allows accurate inspection and narrow web slitting. Narrow Web Slitting Rewinding Machine unit as ideal for slitting salvage winding, and de-laminatio of rolls. Narrow Web Slitting Rewinding Machine Manufacturer allows to accurate inspection and narrow web slitting of lamination film materials. Film Label Roll Paper Narrow Web Slitter Slitter Counter Rewinder Roller Cutter Converter Machine.
- Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
- Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
- The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
- It is great substitute to online coding / batching operation
- Convenient height for operation
- Compact Design
- Variable speed drive
- Double drive
Technical Specification |
|
Web width |
100 to 1500 MM |
Max. Weight of Unwind |
100 to 1000 KG |
Max. Parent Reel Dia. |
400 MM |
Max. Rewind Reel Dia. |
400 MM |
Rewind Core Dia. |
76 MM |
Motor |
2 HP AC / DC Motor (3, 5 HP also available on suitable model) |
Maximum Designed Speed |
100 to 150 Mtrs / Min |
